Pareto Chart in Excel



Excel 2016 or later | All Versions

This example teaches you how to create a Pareto chart in Excel. The Pareto principle states that, for many events, roughly 80% of the effects come from 20% of the causes. In this example, we will see that roughly 80% of the complaints come from 20% of the complaint types.

Excel 2016 or later

To create a Pareto chart in Excel 2016 or later, execute the following steps.

1. Select the range A3:B13.

Pareto Chart Data in Excel

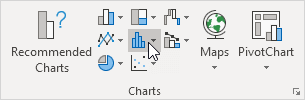

2. On the Insert tab, in the Charts group, click the Histogram symbol.

Insert Pareto Chart

3. Click Pareto.

Click Pareto

Result:

Column Chart and Line Graph

Note: a Pareto chart combines a column chart and a line graph.

4. Enter a chart title.

5. Click the + button on the right side of the chart and click the check box next to Data Labels.

Add Data Labels

Result:

Pareto Chart in Excel 2016

Conclusion: the orange Pareto line shows that (789 + 621) / 1722 ≈ 80% of the complaints come from 2 out of 10 = 20% of the complaint types (Overpriced and Small portions). In other words: the Pareto principle applies.

All Versions

If you don't have Excel 2016 or later, simply create a Pareto chart by combining a column chart and a line graph. This method works with all versions of Excel.

1. First, select a number in column B.

Select Number

2. Next, sort your data in descending order. On the Data tab, in the Sort & Filter group, click ZA.

Sort in Descending Order

3. Calculate the cumulative count. Enter the formula shown below into cell C5 and drag the formula down.

Calculate Cumulative Count

4. Calculate the cumulative %. Enter the formula shown below into cell D4 and drag the formula down.

Calculate Cumulative Percentage

Note: cell C13 contains the total number of complaints. When we drag this formula down, the absolute reference ($C$13) stays the same, while the relative reference (C4) changes to C5, C6, C7, etc.

5. Select the data in column A, B and D. To achieve this, hold down CTRL and select each range.

Select Data

6. On the Insert tab, in the Charts group, click the Column symbol.

Insert Column Chart

7. Click Clustered Column.

Click Clustered Column

8. Right click on the orange bars (Cumulative %) and click Change Series Chart Type...

Change Series Chart Type

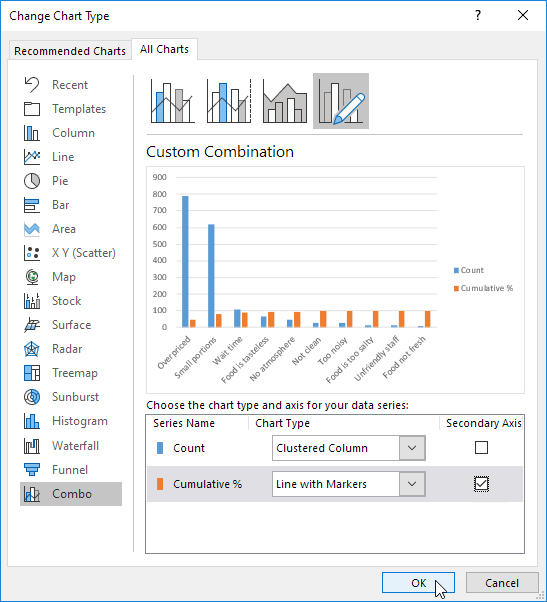

The Change Chart Type dialog box appears.

9. For the Cumulative % series, choose Line with Markers as the chart type.

10. Plot the Cumulative % series on the secondary axis.

11. Click OK.

Create Combination Chart

Note: Excel 2010 does not offer combo chart as one of the built-in chart types. If you're using Excel 2010, instead of executing steps 8-10, simply select Line with Markers and click OK. Next, right click on the orange/red line and click Format Data Series. Select Secondary Axis and click Close.

12. Right click the percentages on the chart, click Format Axis and set the Maximum to 100.

Format Axis

Result:

Pareto Chart

Conclusion: the Pareto chart shows that 80% of the complaints come from 20% of the complaint types (Overpriced and Small portions). In other words: the Pareto principle applies.
