Box and Whisker Plot in Excel



This example teaches you how to create a box and whisker plot in Excel. A box and whisker plot shows the minimum value, first quartile, median, third quartile and maximum value of a data set.

Simple Box and Whisker Plot

To create a simple box and whisker plot, execute the following steps.

1. For example, select the range A1:A7.

Odd Number of Data Points

Note: you don't have to sort the data points from smallest to largest, but it will help you understand the box and whisker plot.

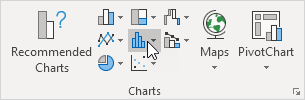

2. On the Insert tab, in the Charts group, click the Statistic Chart symbol.

Insert Box and Whisker Plot

3. Click Box and Whisker.

Click Box and Whisker

Result:

Simple Box and Whisker Plot in Excel

Explanation: the middle line of the box represents the median or middle number (8). The x in the box represents the mean (also 8 in this example). The median divides the data set into a bottom half {2, 4, 5} and a top half {10, 12, 15}. The bottom line of the box represents the median of the bottom half or 1st quartile (4). The top line of the box represents the median of the top half or 3rd quartile (12). The whiskers (vertical lines) extend from the ends of the box to the minimum value (2) and maximum value (15).

Outliers

To see how Excel handles outliers in box and whisker plots, check out the following example.

1. For example, select the range A1:A11.

Data Set with Outlier

Note: the median or middle number (8) divides the data set into two halves: {1, 2, 2, 4, 5} and {10, 12, 15, 18, 35}. The 1st quartile (Q1) is the median of the first half. Q1 = 2. The 3rd quartile (Q3) is the median of the second half. Q3 = 15.

2. On the Insert tab, in the Charts group, click the Statistic Chart symbol.

Insert Box and Whisker Plot

3. Click Box and Whisker.

Click Box and Whisker

Result:

Box and Whisker Plot with Outlier

Explanation: the interquartile range (IQR) is defined as the distance between the 1st quartile and the 3rd quartile. In this example, IQR = Q3 - Q1 = 15 - 2 = 13. A data point is considered an outlier if it exceeds a distance of 1.5 times the IQR below the 1st quartile (Q1 - 1.5 * IQR = 2 - 1.5 * 13 = -17.5) or 1.5 times the IQR above the 3rd quartile (Q3 + 1.5 * IQR = 15 + 1.5 * 13 = 34.5). Therefore, in this example, 35 is considered an outlier. As a result, the top whisker extends to the largest value (18) within this range.

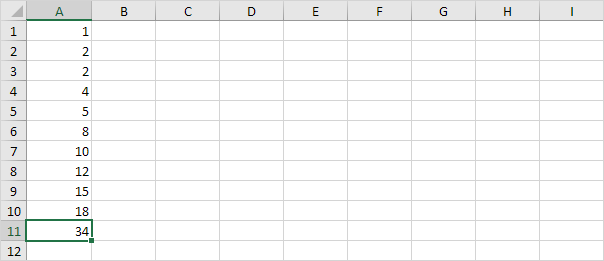

4. Change the last data point to 34.

Change Data Point

Result:

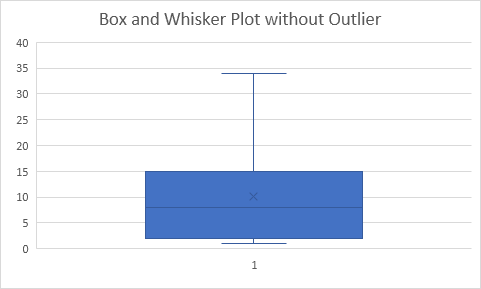

Box and Whisker Plot without Outlier

Explanation: all data points are between -17.5 and 34.5. As a result, the whiskers extend to the minimum value (2) and maximum value (34).

Box Plot Calculations

Most of the time, you cannot easily determine the 1st quartile and 3rd quartile without performing calculations.

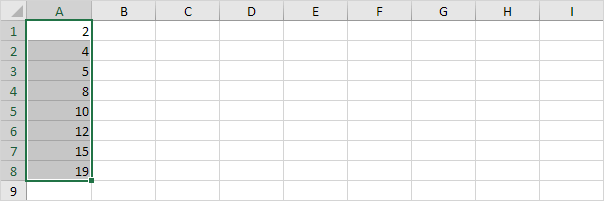

1. For example, select the even number of data points below.

Even Number of Data Points

2. On the Insert tab, in the Charts group, click the Statistic Chart symbol.

Insert Box and Whisker Plot

3. Click Box and Whisker.

Click Box and Whisker

Result:

Box and Whisker Plot in Excel

Explanation: Excel uses the QUARTILE.EXC function to calculate the 1st quartile (Q1), 2nd quartile (Q2 or median) and 3rd quartile (Q3). This function interpolates between two values to calculate a quartile. In this example, n = 8 (number of data points).

4. Q1 = 1/4*(n+1)th value = 1/4*(8+1)th value = 2 1/4th value = 4 + 1/4 * (5-4) = 4 1/4. You can verify this number by using the QUARTILE.EXC function or looking at the box and whisker plot.

First Quartile

5. Q2 = 1/2*(n+1)th value = 1/2*(8+1)th value = 4 1/2th value = 8 + 1/2 * (10-8) = 9. This makes sense, the median is the average of the middle two numbers.

Median

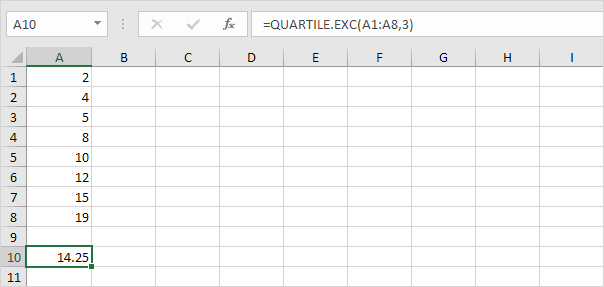

6. Q3 = 3/4*(n+1)th value = 3/4*(8+1)th value = 6 3/4th value = 12 + 3/4 * (15-12) = 14 1/4. Again, you can verify this number by using the QUARTILE.EXC function or looking at the box and whisker plot.

Third Quartile
