Heat Map



To create a heat map in Excel, simply use conditional formatting. A heat map is a graphical representation of data where individual values are represented as colors.

To create a heat map, execute the following steps.

1. Select the range B3:M11.

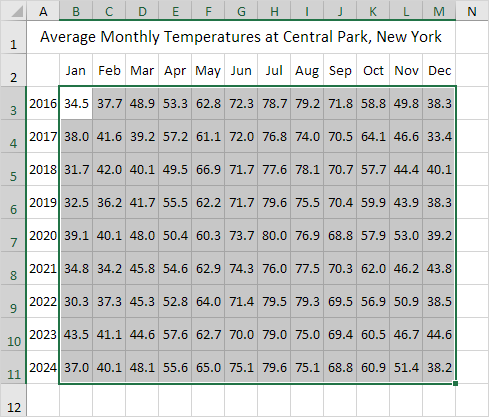

Heat Map Data

2. On the Home tab, in the Styles group, click Conditional Formatting.

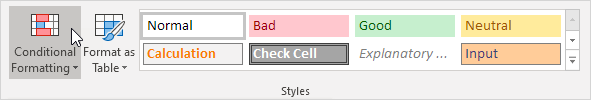

Click Conditional Formatting

3. Click Color Scales and click a subtype.

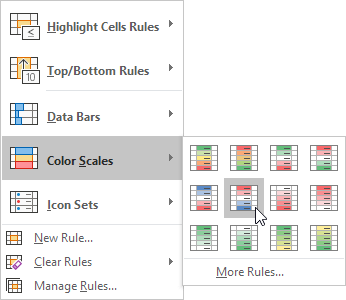

Click Color Scales

Result. A heat map with numbers.

Heat Map with Numbers

4. Select the range B3:M11.

5. Right click, and then click Format Cells (or press CTRL + 1).

6. Select the Custom category.

7. Type the following number format code: ;;;

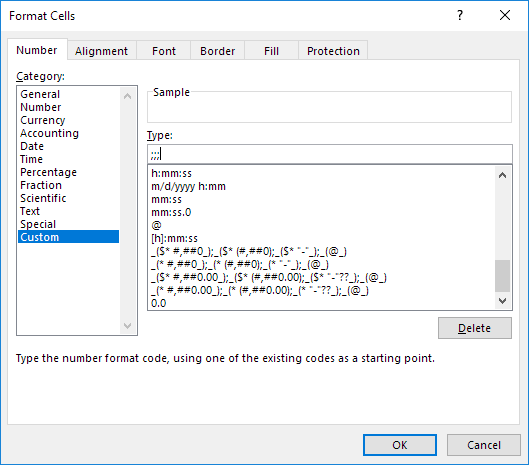

Custom Number Format

8. Click OK.

Result. A heat map in Excel.

Heat Map in Excel

Note: you can clearly see that the summer of 2014 in New York was cool and that Christmas 2015 in New York was warm.

11/11 Completed! Learn more about conditional formatting >
