Circular Reference



Direct Circular Reference  |  Indirect Circular Reference  |  Find Circular References

A circular reference in Excel occurs when a formula directly or indirectly refers to its own cell. This is not possible.

Direct Circular Reference

Let's start simple. A direct circular reference in Excel occurs when a formula directly refers to its own cell.

1. For example, the formula in cell A3 below directly refers to its own cell (A3). This is not possible.

Direct Circular Reference in Excel

2. Press Enter. The circular reference error message appears.

Circular Reference Error Message

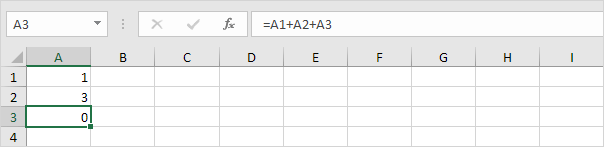

3. Click OK. Excel returns a 0.

Accept Direct Circular Reference

Indirect Circular Reference

An indirect circular reference in Excel occurs when a formula indirectly refers to its own cell. Let's look at a simple example.

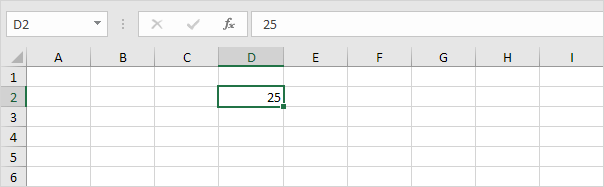

1. For example, cell D2 below contains the value 25.

Cell D2

2. Cell F4 refers to cell D2.

Relative Reference

3. Cell C5 refers to cell F4.

Relative Reference

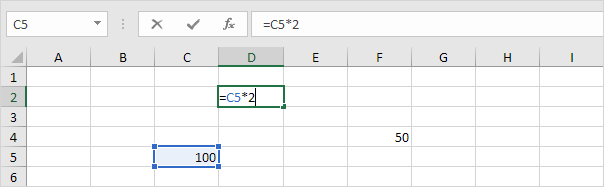

4. So far, everything's OK. Now replace the value 25 in cell D2 with the formula shown below.

Create Indirect Circular Reference

5. Press Enter. The circular reference error message appears.

Circular Reference Error Message

6. Click OK. Excel returns a 0.

Indirect Circular Reference in Excel

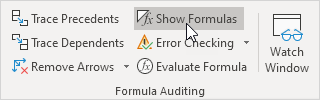

7. On the Formulas tab, in the Formula Auditing group, click Show Formulas.

Show Formulas

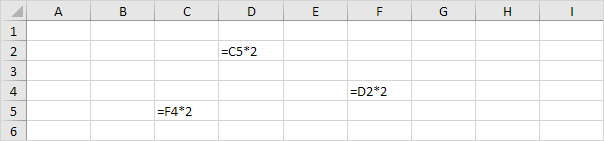

8. Cell D2 refers to cell C5. Cell C5 refers to cell F4. Cell F4 refers back to cell D2.

Circle

Conclusion: the formula in cell D2 indirectly refers to its own cell (D2). This is not possible. The formulas in cell C5 and cell F4 also refer back to their own cell (it's a circle).

Find Circular References

To find circular references in Excel, in the Formula Auditing group, click the down arrow next to Error Checking and click Cell References.

1. Our sheet contains 2 circular references. 1 direct circular reference (A3) and 1 indirect circular reference (D2, C5 and F4).

Circular References in Excel

2. On the Formulas tab, in the Formula Auditing group, click the down arrow next to Error Checking.

Error Checking

3. Click Circular References. Excel shows the cell address of one circular reference.

Find Circular Reference

4. You can also look at the status bar. This is much easier.

Status Bar

5. Fix this circular reference.

Fix Circular Reference

To find more circular references, repeat these steps.

6. On the Formulas tab, in the Formula Auditing group, click the down arrow next to Error Checking.

Error Checking

7. Click Circular References. Excel shows the cell addresses of the indirect circular reference.

Multiple Cell Addresses

8. The status bar only displays a single cell address.

Single Cell Address

Note: fix this circular reference by replacing one of the formulas with a value. As a result, the warning in the status bar will disappear.
