Color Scales



Color Scales in Excel 2010 or later make it very easy to visualize values in a range of cells. The shade of the color represents the value in the cell.

To add a color scale, execute the following steps.

1. Select a range.

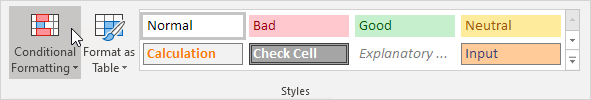

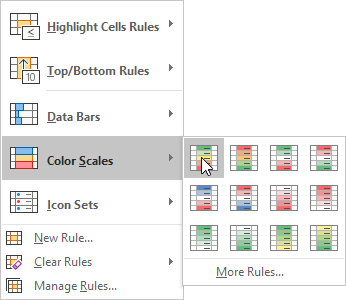

2. On the Home tab, click Conditional Formatting, Color Scales, and click a subtype.

Create Conditional Formatting Rule

Result:

Color Scale in Excel

Explanation: by default, for 3-Color scales, Excel calculates the 50th percentile (also known as median, middle value or midpoint). The cell that holds the minimum value (9) is colored red. The cell that holds the median (36) is colored yellow, and the cell that holds the maximum value (80) is colored green. All other cells are colored proportionally.

Read on to further customize this color scale.

3. Select the range A1:A7.

4. On the Home tab, click Conditional Formatting, Manage Rules.

5. Click Edit rule.

Excel launches the Edit Formatting Rule dialog box. Here you can further customize your color scale (Format Style, Minimum, Midpoint and Maximum, Color, etc).

Edit Formatting Rule

Note: to directly launch this dialog box for new rules, at step 2, click More Rules.

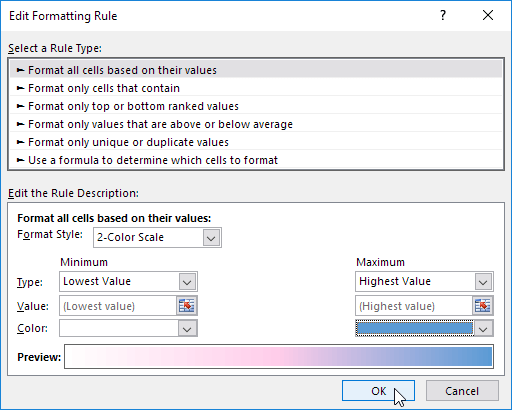

6. Select 2-Color Scale from the Format Style drop-down list and select white and blue.

7. Click OK twice.

Edit the Rule Description

Result.

2-Color Scale
